DocWriter Studio Multi-Agent: AI-Powered Document Generation on Azure

DocWriter Studio Multi-Agent is helping with enterprise technical documentation. Migration guides, integration playbooks, and architecture documents often balloon to 60+ pages, require multiple review cycles, and demand a consistent tone across dozens of sections. Manual authoring means weeks of work, fragmented knowledge, and documents that quickly fall out of date.

This article walks through the high-level design (HLD) and business flow of DocWriter Studio, an agentic AI system that orchestrates multiple specialised AI agents to generate executive-ready technical documents with embedded diagrams—all running on Azure Container Apps and Azure Service Bus.

All articles from the series can be found here.

Live Demo

🚀 Try the Free Demo: DocWriter Studio Multi-Agent AI – Create professional technical documents in minutes, not weeks.

Challenges with long documents created by the AI

Modern enterprises face three critical documentation challenges:

1. Scale and coherence – Documents exceed 60 pages with dozens of interdependent sections. Manual writing leads to contradictions, inconsistent terminology, and gaps in logical flow.

2. Stakeholder alignment – Different audiences (executives, architects, developers) require tailored content, but most teams lack the bandwidth to customise and maintain multiple versions.

3. Diagram integration – Architecture diagrams are authored separately in Visio or draw.io, quickly become outdated, and rarely match the document narrative.

Business requirement: To address these challenges, we needed a cloud-native, automated system that produces publication-ready Markdown, PDF, and DOCX artifacts with auto-generated PlantUML diagrams, while maintaining human oversight through review cycles.

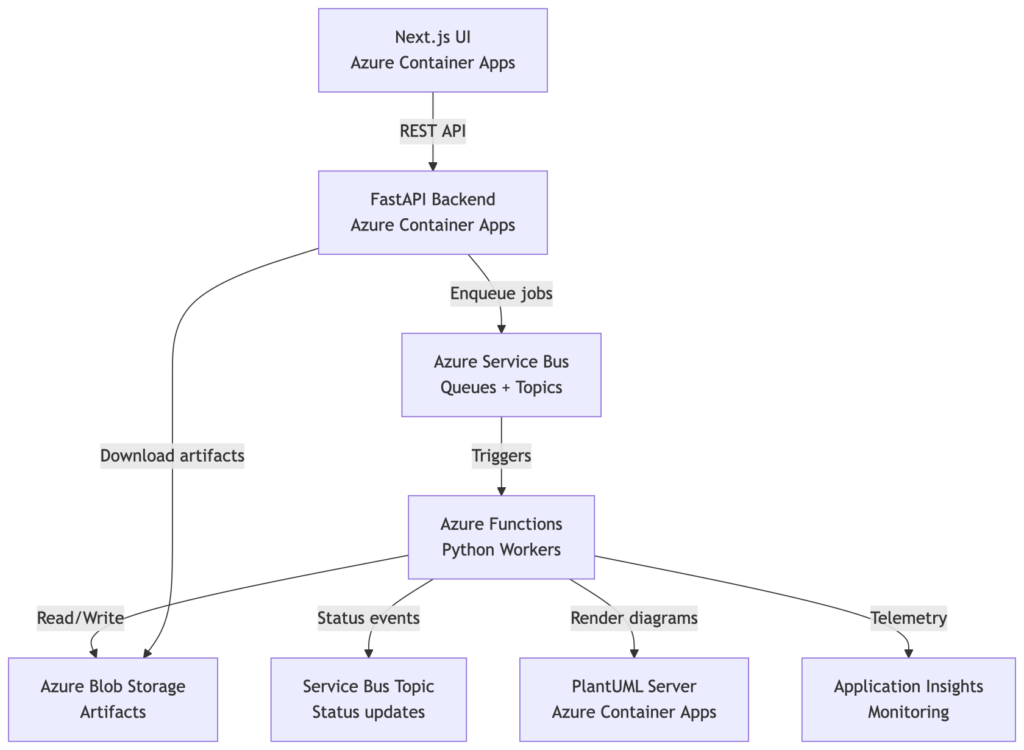

DocWriter Multi-Agent AI Architecture: How It Works

The DocWriter architecture follows three core principles that enable scalability and reliability:

1. Agentic decomposition – Each stage (planning, writing, reviewing, verifying, rewriting) is handled by a specialised AI agent optimised for that task
2. Queue-driven decoupling – Azure Service Bus queues enable horizontal scaling, retry logic, and independent worker lifecycle management
3. Blob-backed state – All artifacts (drafts, plans, diagrams, final documents) persist in Azure Blob Storage with structured paths for auditability.

Azure Cloud Services Powering DocWriter Studio Multi-Agent

To bring this architecture to life, DocWriter Studio leverages the following Azure cloud services:

• Azure Container Apps – Hosts FastAPI, Next.js UI, and PlantUML server with autoscaling
• Azure Functions (Python) – Runs 9 specialized workers (plan-intake, plan, write, review, verify, rewrite, diagram-prep, diagram-render, finalize)
• Azure Service Bus – 10+ queues for stage orchestration + 1 status topic for observability
• Azure Blob Storage – Hierarchical artifact storage (`jobs/{user_id}/{job_id}/…`)
• Application Insights – Distributed tracing, token usage metrics, and stage durations.

DocWriter Studio Multi-Agent Document Generation Workflow: 10-Stage Pipeline

At the heart of the system, DocWriter implements a dependency-aware, iterative pipeline with specialized AI agents at each stage:

DocWriter Studio Multi-Agent Business Flow: From Request to Publication-Ready Document

Step 1: Interactive Intake

Minimal User Input Required:

• Document title (e.g., “Azure Synapse to Fabric Migration Playbook”)
• Target audience (e.g., “Enterprise Integration Architects”)
• Review cycles (1-5, default 2)

AI-Generated Questions: Subsequently, the system generates tailored questions with intelligent defaults based on document type and industry context.

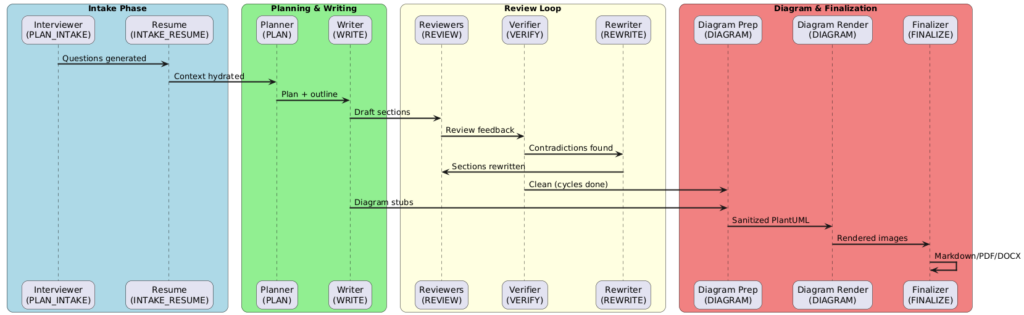

Step 2: Job Orchestation

Step 3: Transparent Progress

Every stage publishes to `docwriter-status` topic:

{
  "job_id": "abc123",
  "user_id": "auth0|xyz",
  "stage": "WRITE_DONE",
  "timestamp": "2026-02-09T14:32:00Z",
  "duration_seconds": 87,
  "tokens_used": 12450,
  "model": "gpt-5.2",
  "artifact_path": "jobs/auth0|xyz/abc123/draft.md"
}

{
  "job_id": "abc123",
  "user_id": "auth0|xyz",
  "stage": "WRITE_DONE",
  "timestamp": "2026-02-09T14:32:00Z",
  "duration_seconds": 87,
  "tokens_used": 12450,
  "model": "gpt-5.2",
  "artifact_path": "jobs/auth0|xyz/abc123/draft.md"
}

User Interface (/workspace): Real-time dashboard displays stage progress bars with completion percentage, token usage per AI agent, duration metrics for performance monitoring, and expandable review cycle details.

Step 4: Secure Artifact Download

Authenticated API Access: Users download final deliverables via GET /jobs/artifacts?path=... with user identity validation, audit trail for compliance, and support for all three formats (MD, PDF, DOCX).

Infrastructure as Code: Terraform for Azure Container Apps

The full code for DocWriter Studio Multi-Agent – Terraform can be found in my GitHub repo: azure-way/aidocwriter

Container Apps Environment & Applications module invocation:

module "app" {
  source                   = "./modules/app"
  name_prefix              = local.name_prefix
  location                 = azurerm_resource_group.main.location
  resource_group_name      = azurerm_resource_group.main.name
  log_analytics_id         = module.monitoring.log_analytics_id
  managed_identity_id      = azurerm_user_assigned_identity.ca_identity.id
  container_registry_login = module.container_registry.url
  plantuml_server_name     = var.plantuml_server_name

  tags = var.tags
  api_images = {
    api = {
      image        = "${module.container_registry.url}/docwriter-api:${var.docker_image_version}"
      min_replicas = 1
      max_replicas = 1
    }
    plantuml = {
      image        = "${module.container_registry.url}/plantuml-server:${var.docker_image_version}"
      min_replicas = 1
      max_replicas = 1
    }
  }

  api_ports = {
    api      = 8000
    plantuml = 8080
  }
   ...
}

module "app" {
  source                   = "./modules/app"
  name_prefix              = local.name_prefix
  location                 = azurerm_resource_group.main.location
  resource_group_name      = azurerm_resource_group.main.name
  log_analytics_id         = module.monitoring.log_analytics_id
  managed_identity_id      = azurerm_user_assigned_identity.ca_identity.id
  container_registry_login = module.container_registry.url
  plantuml_server_name     = var.plantuml_server_name

  tags = var.tags
  api_images = {
    api = {
      image        = "${module.container_registry.url}/docwriter-api:${var.docker_image_version}"
      min_replicas = 1
      max_replicas = 1
    }
    plantuml = {
      image        = "${module.container_registry.url}/plantuml-server:${var.docker_image_version}"
      min_replicas = 1
      max_replicas = 1
    }
  }

  api_ports = {
    api      = 8000
    plantuml = 8080
  }
   ...
}

resource "azurerm_container_app_environment" "main" {
  name                       = "${var.name_prefix}-cae"
  location                   = var.location
  resource_group_name        = var.resource_group_name
  log_analytics_workspace_id = var.log_analytics_id
  tags                       = var.tags

  workload_profile {
    name                  = "Consumption"
    workload_profile_type = "Consumption"
    maximum_count         = 0
    minimum_count         = 0
  }
}

resource "azurerm_container_app" "api" {
  for_each = var.api_images

  name                         = "${var.name_prefix}-${each.key}"
  resource_group_name          = var.resource_group_name
  container_app_environment_id = azurerm_container_app_environment.main.id
  revision_mode                = "Single"
  tags                         = var.tags

  identity {
    type         = "SystemAssigned, UserAssigned"
    identity_ids = [var.managed_identity_id]
  }

  registry {
    server   = var.container_registry_login
    identity = var.managed_identity_id
  }
   ...
}

resource "azurerm_container_app_environment" "main" {
  name                       = "${var.name_prefix}-cae"
  location                   = var.location
  resource_group_name        = var.resource_group_name
  log_analytics_workspace_id = var.log_analytics_id
  tags                       = var.tags

  workload_profile {
    name                  = "Consumption"
    workload_profile_type = "Consumption"
    maximum_count         = 0
    minimum_count         = 0
  }
}

resource "azurerm_container_app" "api" {
  for_each = var.api_images

  name                         = "${var.name_prefix}-${each.key}"
  resource_group_name          = var.resource_group_name
  container_app_environment_id = azurerm_container_app_environment.main.id
  revision_mode                = "Single"
  tags                         = var.tags

  identity {
    type         = "SystemAssigned, UserAssigned"
    identity_ids = [var.managed_identity_id]
  }

  registry {
    server   = var.container_registry_login
    identity = var.managed_identity_id
  }
   ...
}

Key deployment features:

• Consumption plan for cost-effective autoscaling
• Managed identity for ACR pulls and Key Vault secret access
• CORS configuration for localhost + production origins
• Environment variables injected from Key Vault (OpenAI keys, Service Bus connection strings)

Why Azure Container Apps for Multi-Agent AI Systems?

1. Microservices-Ready Architecture

Each component (API, UI, PlantUML server, and 9 Azure Functions) runs independently with isolated scaling policies.

2. Native Azure Service Bus Integration

Functions trigger directly from Service Bus queues with automatic retry, dead-lettering, and distributed tracing via Application Insights.

3. Cost Optimization

• Consumption plan scales to zero
• Pay only for active function executions
• Blob Storage for cold artifacts (cheaper than databases)

4. Enterprise Compliance

• Private networking via VNet integration (optional)
• Managed identities eliminate credential usage
• Application Insights provides audit trails for document lineage

5. Developer Experience

• Local development with `func start` + `uvicorn` mirrors production
• GitHub Actions CI/CD with Terraform drift detection
• Terraform modules for repeatable infrastructure

DocWriter metrics from tests

DocWriter Studio Multi-Agent – lessons learned

1. Dependency-Aware Writing is Critical

Sections written in topological order (prerequisites first) dramatically reduce contradictions. Writer agent receives summaries of all dependencies before generating content.

2. Batching Reduces Token Costs

Originally, each section triggered a separate review call. Batching 3 sections per review reduced token usage by 40% while maintaining quality.

3. PlantUML Requires Sanitization

Raw LLM-generated PlantUML often has syntax errors (missing `@enduml`, stray markdown fences). A dedicated GPT-5.2-codex reformatter call before rendering dropped failure rates from 30% to <5%.

4. Status Topic Enables Observability

Publishing stage transitions to a Service Bus topic (not just logs) allows building real-time dashboards, alerting on stalled jobs, and user-facing progress UIs.

5. Auth0 + Blob Isolation is Non-Negotiable

Multi-user SaaS requires scoping blob paths to `jobs/{user_id}/{job_id}/…` and validating ownership at the API layer. Without this, any authenticated user could access others’ artifacts.

What’s Your Take?

Have you built agentic AI systems on Azure? What challenges did you face with multi-stage workflows, cost optimization, or observability? Let’s discuss on [LinkedIn](https://linkedin.com) – I’d love to hear your experiences!

Found this useful? Give the repo a ⭐ and stay tuned for the next article on Azure Service Bus patterns for AI agents.
